Part 6272-160
Manufacturer Code 471587
Dimensions 1.65″ L x 1.65″ W x 1″ D
Alternate Part ‘s 471587, 47-110-1618, PEN471587, PUR-151-4016
Product Description

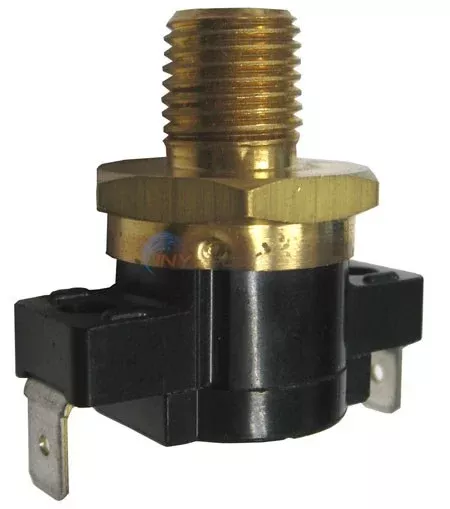

INYO6272-160 PENTAIR471587 GENERAL DESCRIPTION: THIS IS THE 115 DEGREE HIGH LIMIT USED IN THE MINI MAX NT & CH HEATERS THIS THREADS INTO THE TOP OF THE MAIN HEADER THERE IS ALSO 150 DEGREE HIGH LIMIT WHICH LOOKS EXACTLY THE SAME EXCEPT FOR THE LABEL – PART NUMBER FOR THIS IS 6272-170 THE THREADS ARE STANDARD 1/4″ NPT THESE ACTUALLY MEASURE ABOUT 1/2″ DIAMETER AT THE END THE HEX HEAD SIZE USED ON THE TOP OF THE BRASS PORTION IS 1″ MARKINGS: THIS HAS A YELLOW LABEL WITH 471587 ON IT
