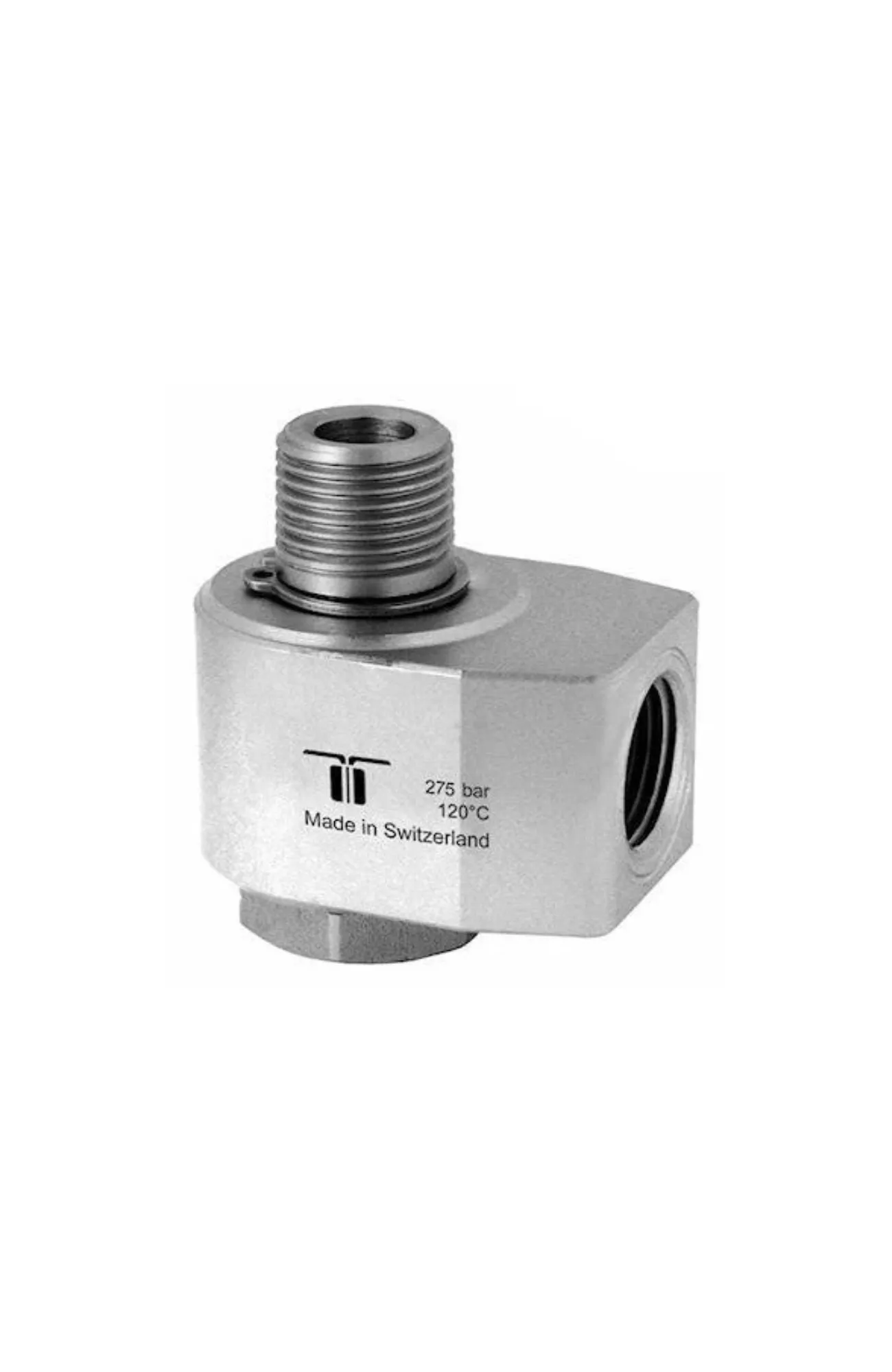

The Mosmatic WDB Swivel 43.259 is a compact, high-performance swivel specifically designed for use in Mosmatic ceiling booms and high-pressure hose systems. Manufactured from nickel-plated brass, this swivel provides excellent durability and corrosion resistance. It features a sliding bearing for smooth rotation and an O-ring NBR seal for reliable leak protection. Engineered without a snap ring, it is optimized for integration into Mosmatic ceiling booms. With ” NPTF inlet to G” male outlet, this swivel supports up to 4000 psi, 30 RPM, and 250F, making it ideal for rigorous commercial cleaning applications.
Applications
-
Mosmatic ceiling booms (designed for direct fit)
-
High-pressure hose reels
-
Industrial and commercial pressure cleaners
-
Car wash equipment
-
Service bay and garage pressure wash setups
Key Features
-
Durable nickel-plated brass body for long-lasting performance
-
Sliding bearing enables smooth, controlled rotation
-
No snap ring, tailored for use in Mosmatic ceiling booms
-
Thread IN: ” NPTF | Thread OUT: G” M
-
Compact size: Height1.06″ | Overall Length1.77″
-
Nominal Width (NW): “
-
Rated for 4000 psi maximum pressure
-
Handles temperatures up to 250F
-
Designed for 30 RPM max rotational speed
-
O-ring NBR seal provides secure, leak-free operation
Specs
Pressure: 4000 psi
Temperature: 250
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8″ NPTF
Thread Out: G2 G1/4″ M
Nominal Width (NW): 1/4″
Wrench Size (SW): 0.87
Height (H): 1.06
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 1.77
Length 3 (L3): 1.14
Length 4 (L4): 0.98
Length 5 (L5): 0.43
Weight: 9.6 oz
