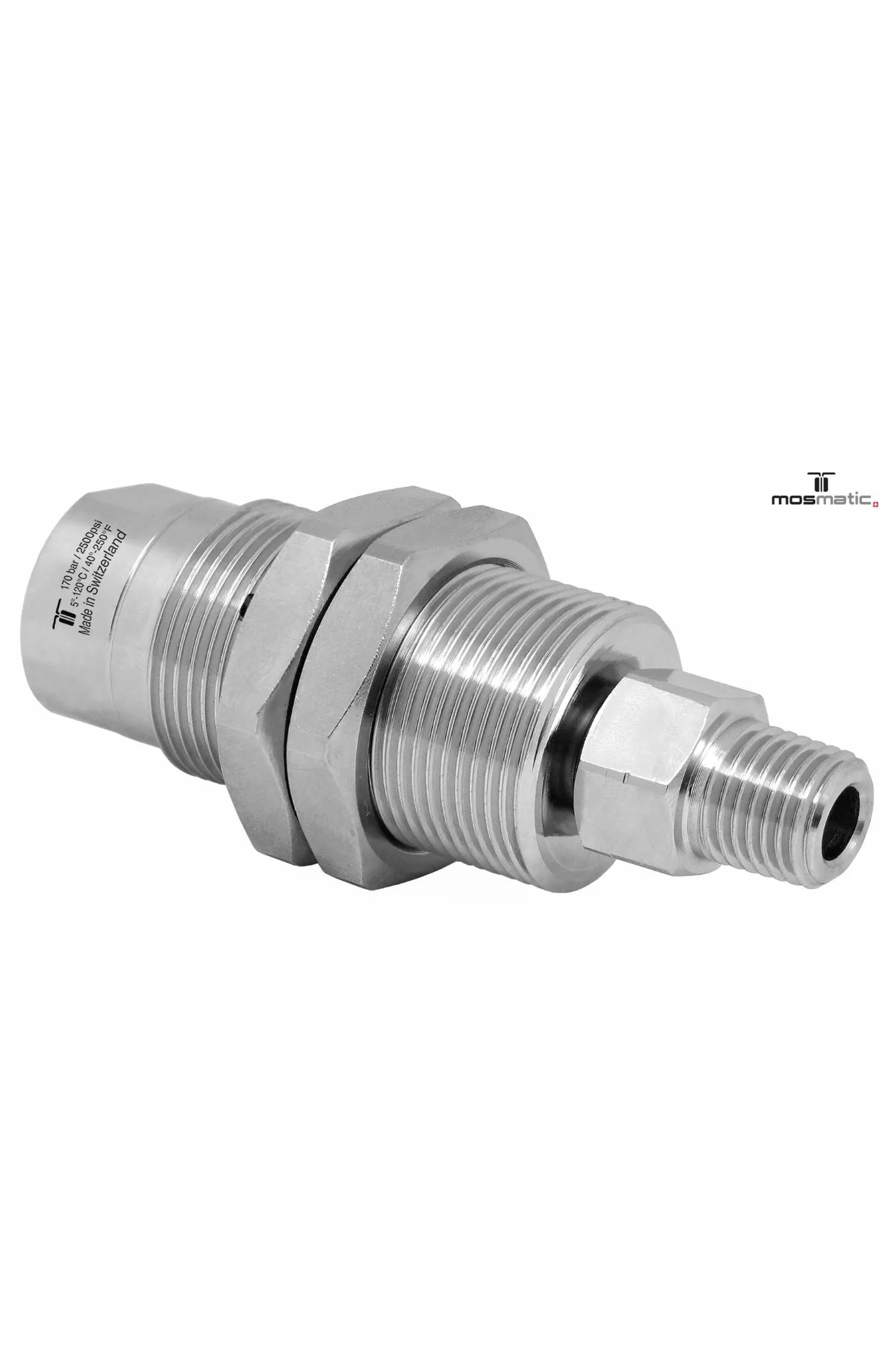

The Mosmatic DXGI Swivel 37.168 is a high-precision stainless steel swivel engineered for high-RPM, self-rotating cleaning systems. Ideal for surface cleaners, parts washers, and tire cleaning applications, this swivel offers exceptional corrosion resistance, leak protection, and smooth performance. It features a triple bearing systemtwo radial ball bearings and one thrust ball bearingfor stable and efficient rotation. A ceramic seal system ensures long-lasting, leak-free operation under pressure. With a secure bulkhead mounting design and maintenance-free construction, the DXGI 37.168 delivers industrial-grade reliability for the most demanding environments.
Applications
-
Surface cleaners
-
Parts washers
-
Tire and wheel cleaning tools
-
Self-rotating, high-RPM cleaning systems
-
Industrial and commercial pressure washing equipmentv
Key Features
-
Corrosion-resistant stainless steel body
-
Triple bearing system: 2x radial, 1x thrust ball bearing
-
Ceramic seal system for superior leak protection
-
Designed for high-RPM, self-rotating cleaning tools
-
Maintenance-free performance
-
Bulkhead fitting for secure, fixed installation
-
Thread IN: 3/8″ NPTF | Thread OUT: G3/8″ M
-
Max Pressure: 2500 PSI (17 MPa)
-
Max RPM: 2000
-
Temperature Range: 40F250F
-
Overall Diameter: 1.42″
-
Overall Length: 3.14″
-
Nominal Width (NW): 1/4″
-
Wrench Size (SW): 0.87″
Specs
Pressure: 2500 psi (17 MPa)
Temperature: 40- 250
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8″ NPTF
Thread Out: G2 G3/8″M
Nominal Width (NW): 1/4″
Wrench Size 1 (SW1): 0.87″
Wrench Size 2 (SW2): 0.75″
Wrench Size 3 (SW3): 1.42″
Diameter (D) (overall diameter): 1.42″
Length 1 (L1) (overall length) : 3.14″
Length 2 (L2): 0.39″
Weight: 9.7 oz
