Part 6272-25F
Manufacturer Code 075628
Dimensions 16″ L x 16″ W x 3″ D
Alternate Part ‘s 075628, 75628, 075628Z, 47-110-1328, PEN075628
Product Description

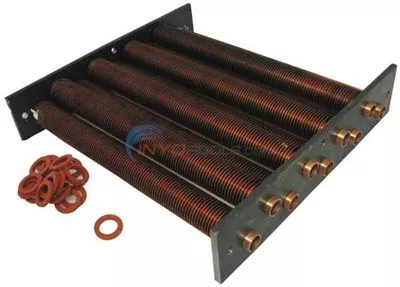

INYO6272-25F PENTAIR075628 GENERAL DESCRIPTION: THIS IS THE TUBE BUNDLE USED IN THE PENTAIR 200 MINI MAX & MINI MAX PLUS HEATERS NUMBER OF TUBES: 9 (STAGGERED WITH 4 ON TOP AND 5 ON BOTTOM) LENGTH: 15-1/8″ (LENGTH FROM OUTSIDE OF ENDPLATE TO OUTSIDE OF ENDPLATE) HEIGHT): 3″ (END PLATE HEIGHT) WIDTH: 14-3/8″ (MEASURED ON THE ENDPLATE – BASICALLY THIS IS HOW LONG THE ENDPLATE IS) MARKINGS: NO MARKINGS ITEMS INCLUDED WITH THE TUBE BUNDLE (18) 070951 TUBE SEAL GASKETS
