Manufacturer: Watts
Brand: Flow-Max
Filter Type: Jumbo Filter Cartridges
Filter media: Synthetic Media – With cellulose-free filter media for water filtration applications
Used For: Sediment Filtration
Used With Housings: FMJCH40 Flow-Max Model 40 – or – HUR 40 HP Harmsco HP Hurricane
Outside Diameter: 7-3/4″
Length: 9-5/8″
Micron Rating: 1 Micron
Recommended Flow Rate: 30 gpm

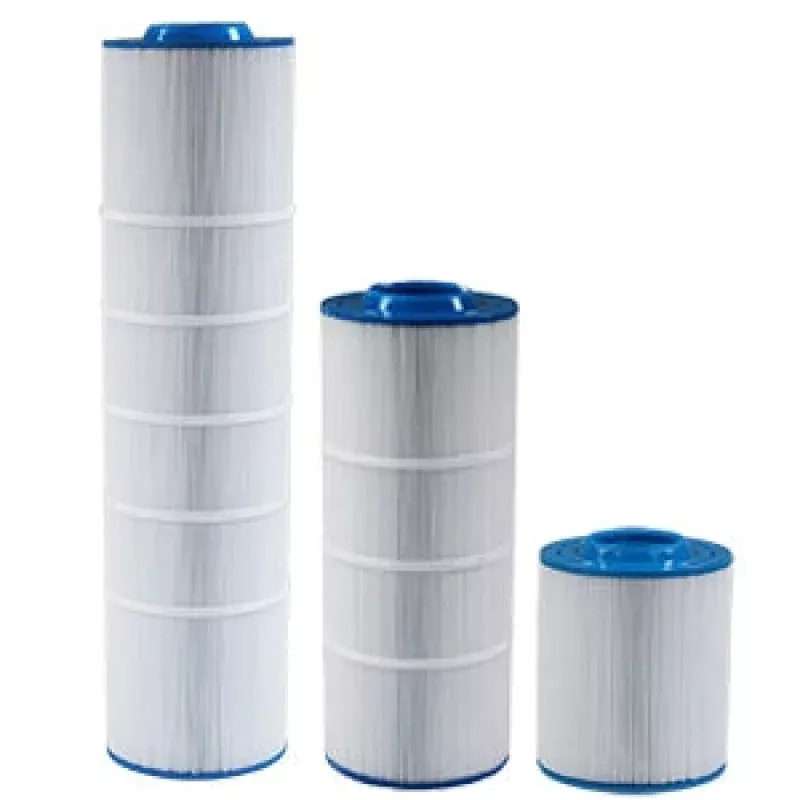

Flow-Max FMHC-40-1EZ Jumbo Pleated Filter Cartridge
Brand: Flow-Max
Filter Type: Jumbo Filter Cartridges
Filter media: Synthetic Media – With cellulose-free filter media for water filtration applications
Used For: Sediment Filtration
Used With Housings: FMJCH40 Flow-Max Model 40 – or – HUR 40 HP Harmsco HP Hurricane
Outside Diameter: 7-3/4″
Length: 9-5/8″
Micron Rating: 1 Micron
Recommended Flow Rate: 30 gpm
Center tubes:PVC
End caps:Molded Urethane
Used For: Sediment Filtration
Minimum Temperature: 40F
Maximum Temperature: 140F
Maximum Pressure: 40 PSID
About Flow-Max Pleated Filter Cartridges
Flow-Max filter cartridges outperform wound, spun, melt blown, resin bonded and other depth type filter elements because our cartridges are pleated to provide increased surface area and longer life. Lower pressure drop is another significant advantage, using Flow-Max pleated cartridges, which allows for increased flow rates and the use of smaller filter housings to reduce capital equipment costs. Further savings are provided because our 100% synthetic filter media is cleanable, five micron and up, to lower cartridge replacement costs.
Flow-Max filter cartridges outperform other pleated elements because our high performance filter media is systematically produced using 100% synthetic fibers, with no binders or additives to leave a residue, foam or contaminate. Our filter media is dramatically thicker than other products. For this reason, Flow-Max cartridges provide depth filtration for greater sediment removal, along with more surface area with our pleated design.
Flow-Max Pleated Filters Features
Filter media is pleated for greater surface area
Synthetic filter media is cellulose-free
Thicker filter media has a greater capacity to capture and retain particles, compared to thin, more rigid media types, which have less void space for particle retention
Long lengths have netting to hold pleats in place
All cartridge types and lengths are individually wrapped
Benefits to using Flow-Max Filters
Low pressure drop; long life; reduced filtration costs, compared to wound and spun cartridges.
No additives or binders, which may cause foaming.
Increased dirt holding capacity; longer life; fewer cartridge replacements needed; and reduced filtration costs, compared to other pleated cartridge suppliers
Increased particle removal efficiency; longer life; and reduced cost per gallon filtered
Superior performance and appearance
Provides security at no additional cost
Lower pressure drop for higher flow rates
Flow-Max cartridges are pleated, so initial pressure drop is significantly less compared to depth cartridges, such a wound, spun, melt blown and resin bonded. As a result, higher flow rates are possible, reducing filter housing size requirements to lower capital equipment costs.
Washable & Reusable
Flow-Max cartridges are washable and reusable, five micron and up to reduce filtration costs. For best results, direct spray into pleats to dislodge sediment. Or, let dry and brush off filter cake from surface of the media
