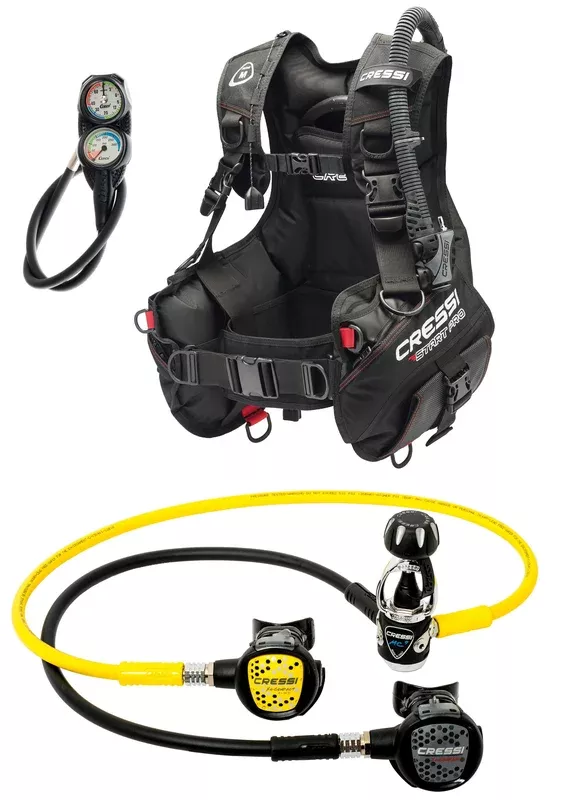

This is theCressi START-ER PRO Scuba Diving Package
This package inlcudes:
- B.C.D. START PRO
- 1ST STAGE MC9 – 2ND STAGE COMPACT
- OCTOPUS COMPACT
-
MINI SPG CONSOLE
Features:
For BCD Start:
-500 denier cordura (exterior) and 420 denier nylon (interior)
– External ballast-carrying pockets with quick-release safety buckle
– 2 very big multipurpose zip pockets
– ultralight rigid backplate with carrying handle.
– 3 pressure relief valves.
– Four 40 mm engineering plastic D-rings (2 on the shoulder straps and 2 on the lower part of the air cell.
– Two 25mm engineering plastic D-rings on the pockets.
– Size indicated clearly on the shoulder strap.
– Shoulder straps with 50mm buckles.
For 1st stage:
-Balanced diaphragm (seal chamber for MC9SC)
– 2 outlets7/16 UNF
– 4 outlets MP 3/8 UNF
– Service pressure: 300 bar (4350 psi) DIN version,
-232 bar (3365 psi) Yoke version
– Calibration pressure: 10 Bar
– Brass body Electroless Nickel plated
– High capacity conical filter electroless nickel plated
– Aisi 316 removable nozzle
– Hyper-balancing
– Anti-pressure drop pneumatic spring
– Setting spring: stainless steel witicropeening treatment
– Replaceable cylinder with anti-frictionand anti-corrosion properties
– Elastomer protector
– Flow rate: 4500 l/min
– Yoke version weight: 590 gr
– Din version weight: 450 gr
For2nd stage:
– Downstream system
– Adjustable venturi effect
– Patented antifriction lever
– Big purge button
– Anti-scratch surface
– Bayonet-type cap holder with security lock
– Removable exhaust tee
– Weight without hose: 135 gr
COMBINATION PERFORMANCE
– Average Cracking effort 6 mbar
– Average breathing effort 1 J/l
JACKETED HOSE extremely light and flexible weight: 153 gr
CERTIFICATION EN250/2000
For octopus:
Same as Compact 2nd stage
For Mini SPG in PSI:
Case material: chromium plated brass
End scale: 5000 PSI
Face: luminescent with colored sections
Pressure release valve: incorporated
Instrument diameter: 50 mm
Height of case: 14 mm
Total instrument height: 17 mm
Hose diameter: 11 mm
