Part BN40SS
Warranty 1 Year
Dimensions 14″ L x 6.5″ W x 6.5″ D
Alternate Part ‘s 17527, 177778, 181069, 181484, 181579, 182276, 182688, 182798, 182924, 184518, 186062, 186095, 186097, 186887, 193864, 193865, 5KCR39UN2898X, 5U164, 7-182688-02, 7-184518-02, 7-186095-02, 7-186097-02, 7-186097-40, 8-186062-01, BN40, C1456, SPH20FL1, SPH20FLC, 35-126-1025, AOSBN40SS, CRMBN40SS
Product Description

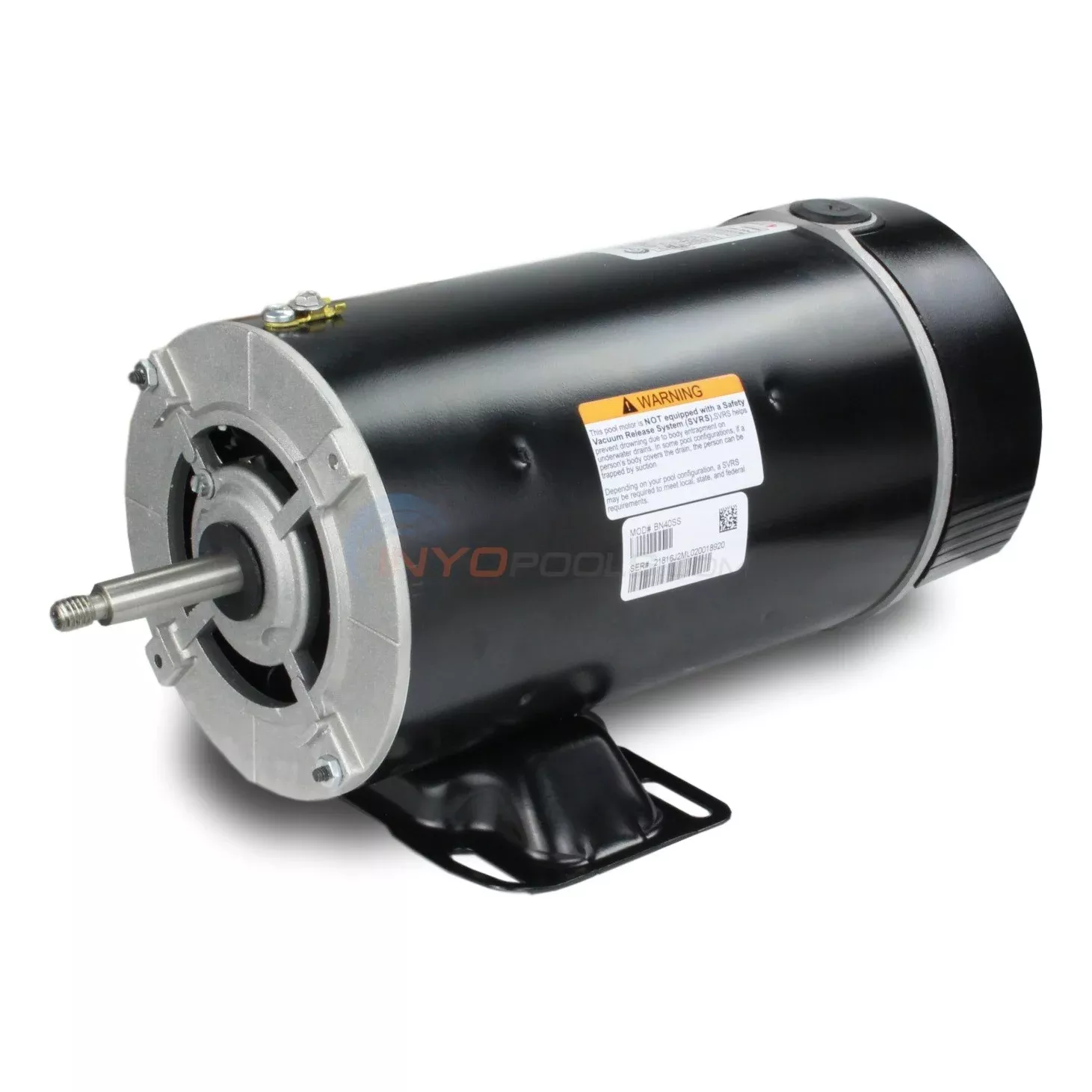

Century 2.0 HP Thru-Bolt 48Y Motor – BN40SS
**NOTE THIS MOTOR IS SHIPPED LESS ON/OFF SWITCH. YOU MAY PURCHASE THE ON/OFF SWITCH SEPARATELY BY ORDERING PART 18374501.**
Application: Above Ground Pools & Spas Replaces: Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy, Etc… Features: All copper windings, Auto protector, Open drip proof, Stainless steel threaded shaft, Thru-Bolt pump mount, “1081” design, 60 HZ, 115/230V, HP = 2, Full load Amps = 20.0 / 10.0, Frame 48Y, Threaded Shaft
Motor DimensionsMotor Image
Product Specifications
Motor Name:2 HP BN40 & BN40SS Replacement Pool MotorHP:2.0 HPSpeed:SingleRPM:3450 RPMVolts:115/230 VAmps:20.0/10.0 ampService Factor:1.0Total HP:2 HPFrame:48YStock :BN40 or BN40SSShaft:ThreadedOverload Protector:AutoDimension Letter:CDimensions:13.33 in.Hz:60 HzCommonly Used On:Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair Whisperflow, Pinnacle and Anthony AR2 SeriesFlange:Thru BoltManufacturer:Century (A.O. Smith)
